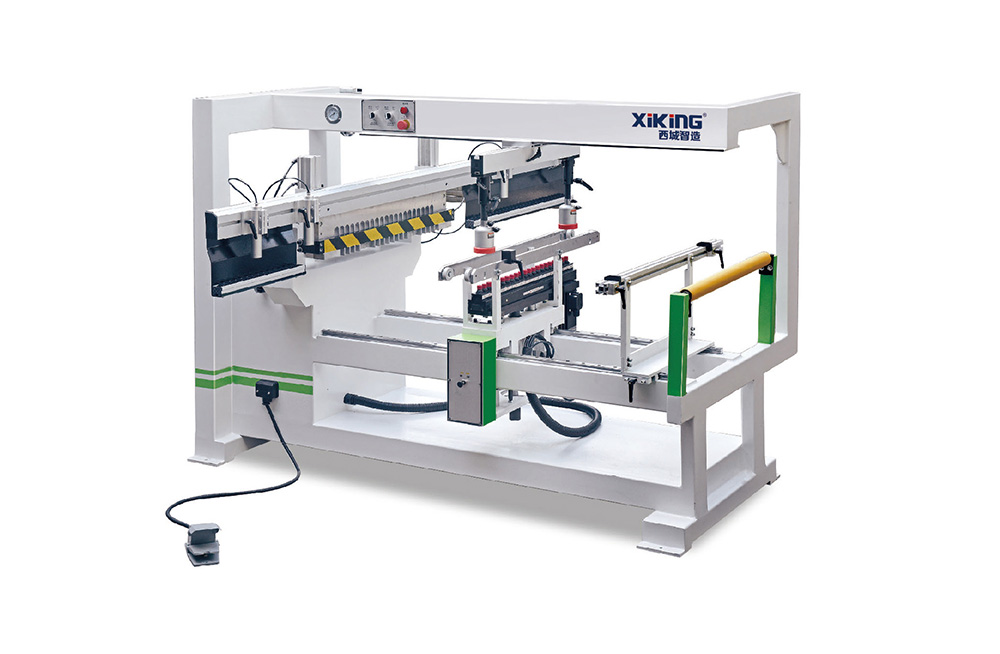

產品中心MZB73212B雙排多軸木工鉆床
參數(shù)配置
|
主軸轉速 |
Spindle speed |
2840r/min |
|
要求電源電壓 |
Suitable voltage |
380V |
|
機器重量 |
Weight |
550kg |
|
工作臺離地面高度 |
Height of working platform off ground |
900mm |
|
外型尺寸 |
Dimension |
2400x1200x1200mm |
| 最大鉆孔直徑 |
Max.drilling diameter |
35mm |
|
最大鉆孔深度 |
Max.working depth |
60mm |
|
最大加工孔距 |
Max.processing pitch |
1620x640mm |
|
最小加工孔距 |
Min.processing pitch |
120x32mm |
|
電機總功率 |
Total power of motor |
1.5kwx3 |
|
鉆接頭裝配孔徑 |
Installation pitch of drilling head |
10mm |
|
壓縮空氣壓力 |
Compressed air pressure |
6-8kg/c㎡ |
|
鉆軸總數(shù) |
Total number of drilling shafts |
21個x3排（21pcsx2lines） |
